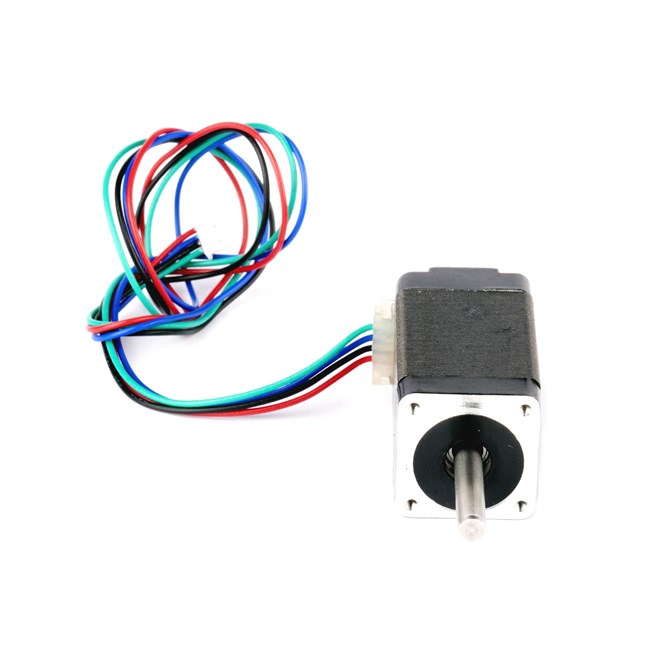

Product Name:Wantai Stepper Motor 20BYGH202 ,14Kg.cm,0.2A, cnc engraver

Product Details:
Model:
20BYGH202
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:

Detailed Product Description:

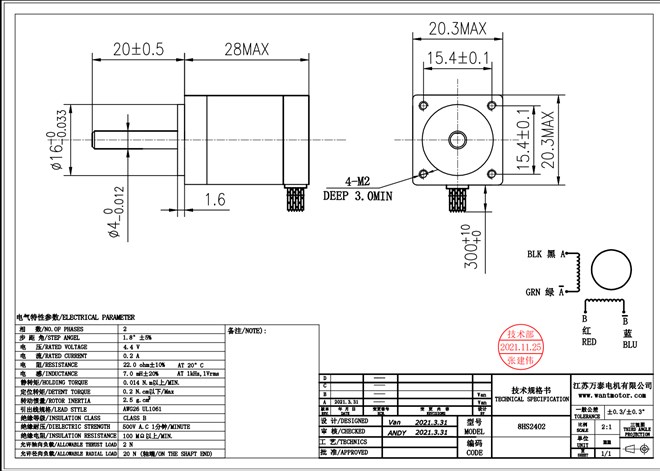

Part No.:   20BYGH202 Single Shaft

Frame Size:  NEMA8

Step Angle:    1.8 degree

Voltage:        4.6VDC

Current:          0.2 A/phase

Resistance:    23 Ohm/phase

Inductance:     8.2 mH/phase

Holding torque: 14Kg-cm

Rotor inertia:   9 g-cm2

Detent torque:    2 kg-cm

Number of wire leads:  4

Weight:   0.05KG

Length:   28mm

Front shaft diameter: 4mm (1/4'')

Front shaft length:  20mm round shaft

This model is for Single shaft, with 4mm motor shaft, 20mm front shaft length, round shaft!

www.wantmotor.com

More Order Quantites, more discount!
