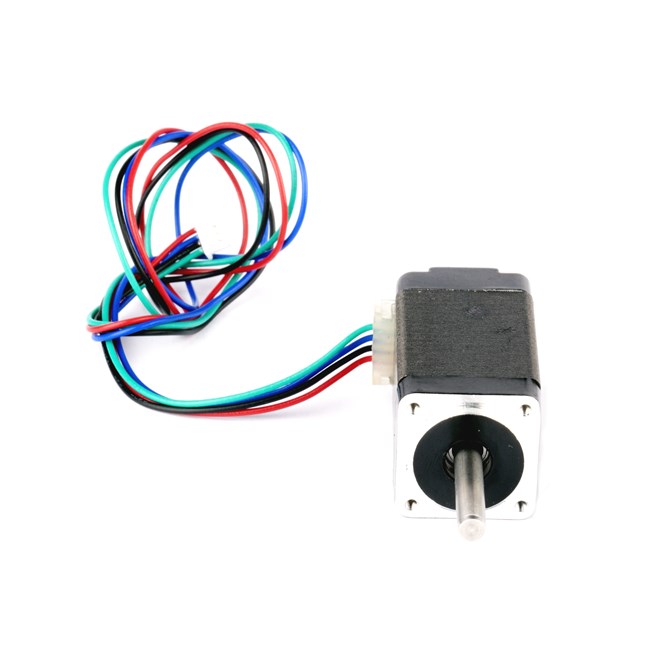

Part No.:   20BYGH406 Single Shaft

Frame Size:  NEMA8

Step Angle:    1.8 degree

Voltage:        3.48VDC

Current:          0.6A/phase

Resistance:    5.8 Ohm/phase

Inductance:     1.6 mH/phase

Holding torque: 26Kg-cm

Rotor inertia:   9 g-cm2

Detent torque:    5 kg-cm

Number of wire leads:  4

Weight:  0.2KG

Length:40mm

Front shaft diameter: 4mm

Front shaft length:  20mm round shaft

This model is for Single shaft, with 4mm motor shaft, 20mm front shaft length, round shaft!
