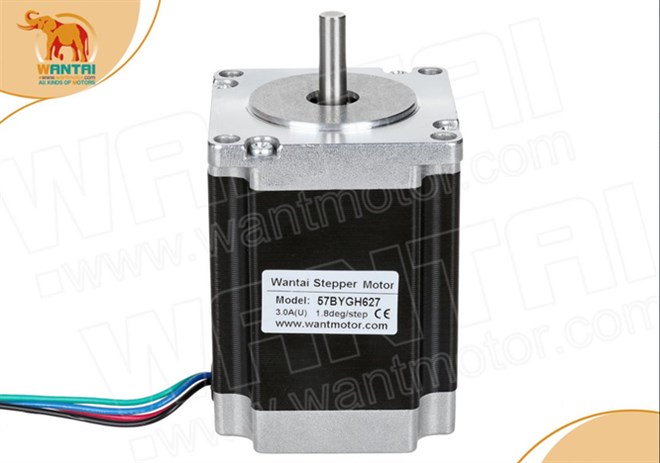

Product Name:Wantai Stepper Motor 57BYGH627 ,19Kg.cm, 3A, cnc engraver

Product Details:
Model:
57BYGH627
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:

Detailed Product Description:

Part No.:     57BYGH627 Single Shaft

Frame Size:  NEMA23

Step Angle:    1.8 degree

Voltage:         3.0VDC

Current:          3.0 A/phase

Resistance:    1.0 Ohm/phase

Inductance:     3.5 mH/phase

Holding torque: 19Kg-cm

Rotor inertia:   480 g-cm2

Detent torque:    1.2 kg-cm

Number of wire leads:  4

Weight:   1KG

Length:   76mm

Front shaft diameter: 6.35mm (1/4'')

Front shaft length:  21mm round shaft

This model is for Single shaft, with 6.35mm motor shaft, 21mm front shaft length, round shaft!
