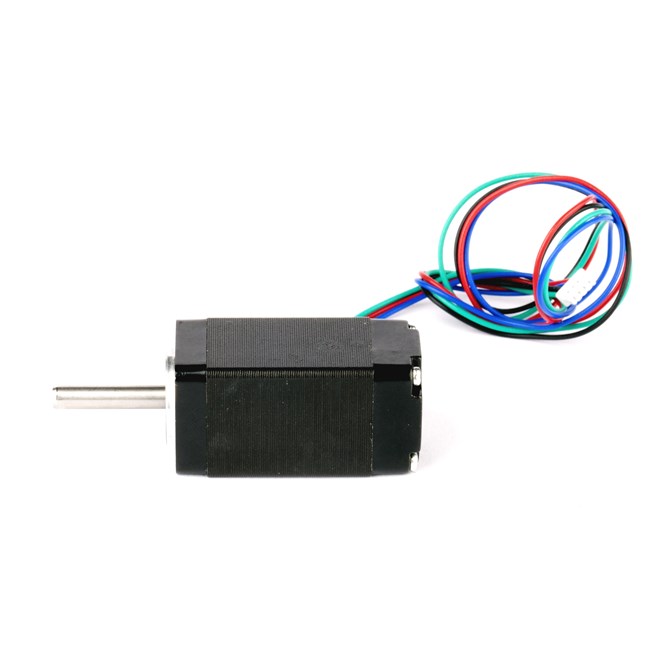

Part No.:   20BYGH302 Single Shaft

Frame Size:  NEMA8

Step Angle:    1.8 degree

Voltage:        5VDC

Current:          0.2A/phase

Resistance:    25 Ohm/phase

Inductance:     8.4 mH/phase

Holding torque: 18Kg-cm

Rotor inertia:   9 g-cm2

Detent torque:   3 kg-cm

Number of wire leads:  4

Weight:   0.06KG

Length:33mm

Front shaft diameter: 4mm (1/4'')

Front shaft length:  20mm round shaft

This model is for Single shaft, with 4mm motor shaft, 20mm front shaft length, round shaft!
